Research Article
William N. Setzer*
William N. Setzer*
Corresponding
author
Aromatic
Plant Research Center, 230 N 1200 E, Suite 100, Lehi, UT 84043, USA.
And
Department
of Chemistry, University of Alabama in Huntsville, Huntsville, AL 35899, USA.
E-mail: wsetzer@chemistry.uah.edu; Tel.: +1-256-468-2862
Ambika Poudel
Ambika Poudel
Aromatic Plant Research Center, 230 N 1200 E, Suite 100, Lehi, UT 84043, USA.
Prabodh Satyal
Prabodh Satyal
Aromatic Plant Research Center, 230 N 1200 E, Suite 100, Lehi, UT 84043, USA.
Kathy Swor
Kathy Swor
Independent Researcher, 1432 W. Heartland Dr., Kuna, ID 83634, USA.
Alicia Moore
Alicia Moore
Independent Researcher, 6346 Pentz Rd., Paradise, CA 95969, USA.
Elizabeth Ankney
Elizabeth Ankney
Independent Researcher, 141 W. 17th St., Lafayette, OR 97127, USA.

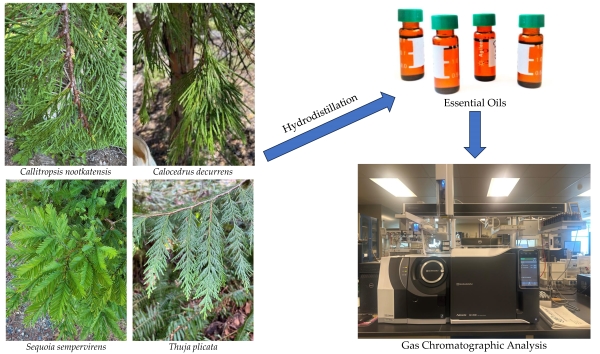

Abstract
Members of the Cupressaceae have historically held importance in traditional medicine as well as sources of essential oils. As part of our interest in medicinal and aromatic plants, we obtained essential oils from the foliage of Callitropsis nootkatensis, Calocedrus decurrens, Sequoia sempervirens, and Thuja plicata growing in the western United States. The essential oils were analyzed by gas chromatography particularly enantioselective gas chromatography to ascertain whether there are trends in the enantiomeric distribution of chiral monoterpenoids in this family. The major components in C. nootkatensis were α-pinene (33.5%, 16.4%; 81.8% (‒)-α-pinene), (+)-δ-3-carene (28.6-11.0%), and limonene (34.4%, 4.2%; 89.7% (+)-limonene). The major components in C. decurrens were (+)-δ-3-carene (28.6-11.0%), limonene (44.4-14.7%, 92.4% (+)-limonene, and terpinolene (10.0-5.4%). The major components in S. sempervirens were α-pinene (18.8-10.1%, 91.6% (‒)-α-pinene), limonene (8.7-6.2%, 87.9% (+)-limonene), and germacrene B (8.2-5.4%). (‒)-α-Thujone (65.9%, 62.5%) and (+)-β-thujone (12.1%, 10.2%) were dominated in the essential oil of T. plicata. The chemical compositions of the essential oils are comparable to those reported previously. However, this is the first investigation of the enantiomeric distribution of chiral monoterpenoids in C. nootkatensis, C. decurrens, and S. sempervirens. (+)-Sabinene is the major enantiomer in the Cupressaceae, whereas (–)-sabinene is the major enantiomer in Pinus spp. (+)-Limonene is the major enantiomer in the Cupressaceae, while (–)-limonene predominates in the Pinaceae. In contrast to members of the Pinaceae (e.g., Abies and Pinus spp.), in which (–)-terpinen-4-ol and (–)-α-terpineol were dominant, these two monoterpene alcohols showed variable enantiomeric distributions in the Cupressaceae. The enantioselective gas chromatographic analysis of the Cupressaceae adds to our understanding of the phytochemistry of this family.
Keywords
Chiral, enantiomers, monoterpenoids, δ-3-carene, limonene, sabinene, thujone, GC-MS.
1. Introduction
The Cupressaceae is made up of 29 genera, which include Cupressus L., Juniperus L., and Thuja L., as well as Callitropsis Oerst., Calocedrus Kurz, and Sequoia Endl. Most members of this family are resinous, and their foliage generally emits strong aromas when rubbed or bruised [1]. As such, several members of the family are commercially important sources of essential oils, including Mediterranean cypress (Cupressus sempervirens L.) foliar essential oil, juniper (Juniperus communis L.) “berry” essential oil, eastern red cedar (Juniperus virginiana L.) wood essential oil, and eastern white cedar (Thuja occidentalis L.) foliar essential oil [2].
Callitropsis nootkatensis (D. Don) Oerst. (syn. Chamaecyparis nootkatensis (D. Don) Spach, Xanthocyparis nootkatensis (D. Don) Farjon & D.K. Harder, Cupressus nootkatensis D. Don), Cupressaceae (Nootka cypress, Alaska yellow-cedar), ranges naturally in coastal northwestern North America, from southern Alaska, through British Columbia and into Washington, including the Cascade Ranges of Washington and Oregon to the Oregon-California border (Fig. 1) [3]. Nootka cypress is an evergreen tree that grows up to around 40 m in height. The foliage forms flat sprays with green scale-like leaves, 1.5-2.5 mm long (Fig. 2) [4].
Figure 1. Natural range of Callitropsis nootkatensis (D. Don) Oerst. [3].
Figure 2. Callitropsis nootkatensis (D. Don) Oerst. A: Foliage. B: Bark.
The Kwakiutl tribe of British Columbia used C. nootkatensis in their traditional medicine [5]. The foliage was used in a sweat bath to treat arthritis and rheumatism, an infusion of the foliage was used externally to treat sores and swellings and it was taken internally as a panacea. Previous studies of the foliar essential oils of C. nootkatensis were carried out by Andersen and Syrdal [6], Cheng and von Rudloff, who were able to isolate and characterize individual enantiomers (–)-α-pinene, (+)-δ-3-carene, and (+)-limonene [7], and Adams et al. [8, 9]. In addition, volatiles from the heartwood extracts of C. nootkatensis have been characterized [10].
Calocedrus decurrens (Torr.) Florin (incense cedar) is a tree growing up to 57 m tall, with cinnamon brown, fibrous bark, and leaves 3-14 mm long (Fig. 3) [11]. The tree is native to montane forests from Oregon south through California to northern Baja California, Mexico, and east to western Nevada (Fig. 4) [12]. The Mendocino Indian Tribe used C. decurrens as a gastrointestinal aid and a decoction of foliage was taken for stomach troubles [13]. The Paiute inhaled an infusion of the foliage to treat colds [14]. The Klamath people used the foliage of C. decurrens to prepare an herbal steam bath [15]. The essential oils of C. decurrens have been studied, including heartwood [16], bark [17], branch [18], and resin [17] essential oils, as well as foliar essential oils [17–22].
Figure 3. Calocedrus decurrens (Torr.) Florin (incense cedar).
A: Habit. B: Bark, C: Foliage.
Figure 4. Native range of Calocedrus decurrens [23].
Sequoia
sempervirens
(D. Don) Endl. (California redwood) is a very large tree, probably the tallest
tree species in the world, growing up to around 110 m tall. The bark is
reddish-brown, thick and fibrous, and deeply furrowed; the leaves are 1-30 mm
long with stomata on both surfaces (Fig. 5). The natural range of the tree is
confined to the coastal areas of California, from the Oregon border, south to
Big Sur State Park [24]. In addition, the tree is a popular
ornamental as well as an agroforestry resource. The Pomo people of California
applied a poultice of heated leaves to treat earaches [25]. The bark [17], wood [26], and leaf [19, 27–30] essential oils of S. sempervirens
have been analyzed. The major components in the leaf essential oils were
generally sabinene (8.5-16.5%), limonene (8.7-10.4%), β-phellandrene
(3.1-13.7%), α-pinene (6.3-10.4%), and myrcene (3.5-7.0%), while the wood was
rich in α-pinene (27.4% and 21.0%), abietadiene (10.0% and 9.6%), trans-totarol
(16.8% and 7.8%), 1-dodecanol (6.6% and 6.8%), and 1-tetradecanol (8.6% and
17.0%) [26].
Figure 5. Sequoia sempervirens (D. Don) Endl. A: Leaves and bark. B: Scan of leaves.
There are two populations of Thuja plicata Donn ex. D. Don (western red cedar), a Coast Range-Cascade Range population from southeastern Alaska to northwestern California, and a Rocky Mountain population ranging from British Columbia to Idaho and Montana (Fig. 6) [3, 31]. Western red cedar is a tree up to 50 m tall. The bark is reddish-brown or grayish-brown and fibrous with longitudinal fissures; the foliage is in sprays, 15-50 cm long and 5-15 cm wide (Fig. 7) [31].
Figure 6. Native range of Thuja plicata [3].
Figure 7. Thuja plicata Donn ex. D. Don. A: Bark. B: Foliage.
There have been several investigations on the foliar essential oil compositions of T. plicata, which has been reviewed [32]. The essential oils were dominated by α-thujone (70.2 ± 8.0%), with lower concentrations of β-thujone (6.8 ± 1.8%), sabinene (3.5 ± 1.5%), and terpinen-4-ol (3.0 ± 0.8%).
As part of our ongoing interest in the essential oils of gymnosperms and aromatic and medicinal plants of the western United States, this study aimed to obtain and analyze the essential oils of four members of the Cupressaceae, Callitropsis nootkatensis, Calocedrus decurrens, Sequoia sempervirens, and Thuja plicata, using gas chromatographic methods. Although the foliar essential oil compositions of these four tree species have been previously reported, this study confirms and complements the previous investigations. Furthermore, to the best of our knowledge, this is the first report on the enantioselective gas chromatographic analyses of C. nootkatensis, C. decurrens, and S. sempervirens. Chiral GC-MS not only provides additional phytochemical characterization of these plants, but also serves to establish a baseline for the comparison of essential oils that may be commercialized and subject to adulteration.
2. Materials and methods
2.1. Plant identification and collection
Foliage from individual C. nootkatensis trees was collected from Mt. Hood, Oregon, USA, and Pine Lake, Washington, USA; C. decurrens samples were collected from Mt. Lassen, California, USA; S. sempervirens samples were collected from Paradise, California, USA; and T. plicata samples were collected from Tillamook State Forest, Oregon, USA. The collection details are summarized in Table 1. The trees were tentatively identified in the field by W.N. Setzer and verified by comparison with herbarium samples from the C.V. Starr Virtual Herbarium, New York Botanical Garden (https://sweetgum.nybg.org/science/vh/, accessed on 12 December 2024). Voucher specimens (Table 1) were deposited at the University of Alabama in Huntsville herbarium. Plant materials were stored frozen (–20 °C) until processed.
Table 1. Collection and hydrodistillation details of Cupressaceae foliar essential oils.
Plant sample | Voucher | Collection Date | Collection location | Mass foliage (g) | Mass essential oil (g) |
Callitropsis nootkatensis, Oregon | WNS-Cnoot-0287 | 25 June 2024 | 45°18'18" N, 121°32'19" W, 1149 m asl | 138.33 | 5.345 |
Callitropsis nootkatensis, Washington | WNS-Cnoot-1004 | 25 October 2024 | 47°35'13" N, 122°01'34" W, 116 m asl | 141.10 | 7.085 |
Calocedrus decurrens #1 | WNS-Cdec-5408 | 28 August 2024 | 40°21'04" N, 121°32'19" W, 1216 m asl | 176.11 | 4.718 |
Calocedrus decurrens #2 | 28 August 2024 | 40°21'04" N, 121°32'18" W, 1213 m asl | 210.02 | 4.796 | |
Calocedrus decurrens #3 | 28 August 2024 | 40°21'04" N, 121°32'18" W, 1214 m asl | 155.49 | 4.619 | |
Sequoia sempervirens #1 | WNS-Ssemp-1247 | 29 August 2024 | 39°46'06" N, 121°34'36" W, 603 m asl | 112.86 | 3.0740 |
Sequoia sempervirens #2 | 29 August 2024 | 39°46'06" N, 121°34'36" W, 603 m asl | 100.70 | 2.5025 | |
Sequoia sempervirens #3 | 29 August 2024 | 39°46'06" N, 121°34'36" W, 603 m asl | 126.14 | 3.6446 | |
Thuja plicata #1 | WNS-ThPl-0306 | 28 June 2024 | 45°18'51" N, 123°26'33" W, 580 m asl | 110.77 | 3.539 |
Thuja plicata #2 | 28 June 2024 | 45°18'52" N, 123°26'32" W, 582 m asl | 77.37 | 3.469 |
2.2. Hydrodistillation
The foliar essential oils of C. nootkatensis, C. decurrens, S. sempervirens, and T. plicata were obtained by hydrodistillation of the chopped fresh/frozen samples using a Likens-Nickerson apparatus with continuous extraction of the distillate with dichloromethane. The hydrodistillation details are summarized in Table 1.
2.3. Gas chromatographic analysis
The essential oils were analyzed by gas chromatography (GC-MS, and enantioselective GC-MS) as previously described [33, 34]. The gas chromatographic instrumentation and protocols are summarized in Supplementary Table S1. Retention indices were determined using the method of van den Dool and Kratz [35]. Essential oil components were determined by comparing with mass spectral fragmentation patterns and retention index values with those reported in the databases of Adams [36], Mondello [37], NIST20 [38], and Satyal [39].
2.4. Statistical analyses
Agglomerative hierarchical cluster analyses (HCA) were carried out using XLSTAT v. 2018.1.1.62926 (Addinsoft, Paris, France). In each case, the major components were used for the analysis, dissimilarity was used to determine clustering based on the Euclidean distance, and Ward’s method was used to define agglomeration. Analysis of variance was conducted by one-way ANOVA followed by Tukey’s post hoc test using Minitab® 18 (Minitab Inc., State College, PA, USA). Differences at p < 0.05 were considered to be statistically significant.
3. Results and discussion
3.1. Callitropsis nootkatensis
Hydrodistillation of C. nootkatensis foliage from Oregon and Washington, USA, gave pale yellow essential oils in yields of 5.35% and 7.09% (w/w), respectively. The essential oils were analyzed by gas chromatography. A total of 115 compounds were identified in the two essential oil samples, which accounted for 99.2% and 99.8% of the total composition (Supplementary Table S2, Supplementary Fig. S1). The major essential oil components are listed in Table 2. The major components in the Oregon and Washington samples were α-pinene (33.5% and 16.4%, predominantly (–)-α-pinene), (+)-δ-3-carene (28.3% and 30.2%), limonene (4.2% and 34.4%, predominantly (+)-limonene), and β-phellandrene (6.1% and 0.7%).
Table 2. Major chemical components of the foliar essential oils (percentages) and monoterpene enantiomeric distribution (percentages) of Callitropsis nootkatensis.
RIcalca | RIdbb | Compounds | Major chemical components (%) | |
Oregon | Washington | |||
933 | 933 | α-Pinene | 33.5 | 16.4 |
948 | 948 | α-Fenchene | 1.1 | 1.3 |
978 | 978 | β-Pinene | 3.7 | 1.5 |
989 | 989 | Myrcene | 4.2 | 2.7 |
1009 | 1008 | δ-3-Carene | 28.3 | 30.2 |
1030 | 1030 | Limonene | 4.2 | 34.4 |
1032 | 1031 | β-Phellandrene | 6.1 | 0.7 |
1086 | 1086 | Terpinolene | 2.7 | 2.9 |
RIcalcc | RIdbd | Enantiomers | Enantiomeric distribution (%) | |
Oregon | Washington | |||
974 | 976 | (–)-α-Pinene | 84.5 | 79.1 |
982 | 982 | (+)-α-Pinene | 15.5 | 20.9 |
1027 | 1027 | (+)-β-Pinene | 2.6 | 7.1 |
1031 | 1031 | (–)-β-Pinene | 97.4 | 92.9 |
1046 | 1052 | (+)-δ-3-Carene | 100.0 | 100.0 |
nd e | na f | (–)-δ-3-Carene | 0.0 | 0.0 |
1075 | 1073 | (–)-Limonene | 19.5 | 1.2 |
1079 | 1081 | (+)-Limonene | 80.5 | 98.8 |
1085 | 1083 | (–)-β-Phellandrene | 22.7 | 88.1 |
1089 | 1089 | (+)-β-Phellandrene | 77.3 | 11.9 |
a RIcalc = Retention index values determined with respect to a homologous series of n-alkanes on a ZB-5ms column. b RIdb = Reference retention index values from the databases [36–39]. c RIcalc = Retention index values determined with respect to a homologous series of n-alkanes on a Restek B-Dex 325 capillary column. d RIdb = Retention index from our in-house database prepared using commercially available standards. e nd = compound not detected. f na = standard compound not available.
Cheng and von Rudloff analyzed five samples of C. nootkatensis foliage from Vancouver Island, British Columbia, Canada, and found α-pinene (34.1 ± 2.7%), δ-3-carene (30.0 ± 4.9%), and limonene (17.3 ± 6.5%) to be the most abundant components [7]. Furthermore, the enantiomers (–)-α-pinene, (+)-δ-3-carene, and (+)-limonene were identified [7]. Adams and co-workers [9] examined foliar essential oils collected from several locations in Alaska, British Columbia, Washington, and Oregon, and used the compositions to describe several chemotypes. Regardless of chemotype, each of the essential oil samples described by Adams et al. showed that α-pinene, δ-3-carene, and limonene were the abundant constituents. In order to place the compositions of this current study into the context of previous reports [7–9], an agglomerative hierarchical cluster analysis (HCA) was carried out (Fig. 8).
Figure 8. Dendrogram obtained from an agglomerative hierarchical cluster analysis (HCA) of Callitropsis nootkatensis essential oil samples. Samples with five numbers are from Adams et al. 2014 [9]; samples Adams-WA, Adams-BC1, and Adams-BC2 are from Adams et al. 2007 [8]; samples This-WA and This-OR are from this current study; samples Cheng-1, -2, -3, 5b, and 6b are from Cheng and von Rudloff 1970 [7]; the sample Czech is a cultivated sample from the Czech Republic [40].
Four well-defined clusters were identified based on the HCA. Cluster 1 has relatively high, comparable concentrations of δ-3-carene (17.7 ± 2.8%), limonene (18.5 ± 4.0%), and β-phellandrene (18.5 ± 4.0%), but relatively low α-pinene concentration (10.6 ± 3.4%). Cluster 2 is made up of the C. nootkatensis sample from Washington in this study, as well as samples from Washington and Vancouver Island, British Columbia, from Adams et al. (2007) [8]. These samples are from geographically comparable locations, therefore, the similarities are not surprising. Cluster 2 is characterized by high limonene (37.2 ± 3.6%), but relatively low α-pinene (12.8 ± 4.1%) and δ-3-carene (19.3 ± 9.1%) concentrations. The sample of C. nootkatensis from Oregon in this study is found in Cluster 3, along with the samples from Cheng and von Rudloff [7] and Adams et al. [9]. High α-pinene (32.0 ± 3.9%) and δ-3-carene (28.9 ± 5.1%) concentrations describe this chemotype, along with relatively low limonene (3.4 ± 1.6%) and β-phellandrene (3.2 ± 0.7%) concentrations. Finally, Cluster 4 shows moderate α-pinene (18.2 ± 5.5%) and δ-3-carene (20.9 ± 4.9%) concentrations, as well as increased concentrations of limonene (8.5 ± 3.8%) and β-phellandrene (7.4 ± 4.7%).
An ANOVA treatment based on the four major components in the four clusters was carried out. The differences between the four clusters are illustrated in Fig. 9. The ANOVA comparison supports the dissimilarities observed in the HCA.
Figure 9. Average percentage compositions of the major components in Callitropsis nootkatensis essential oil clusters. For each component, bars with the same numbers are not significantly different (p > 0.05, ANOVA followed by Tukey’s test).
3.2. Calocedrus decurrens
The foliar essential oils of C. decurrens were obtained as colorless liquids with a yield of 2.28-2.97% (w/w). The major components of the essential oils by gas chromatographic analyses are summarized in Table 3. A total of 74 compounds were identified in the essential oils, which accounted for 91.6%, 95.9%, and 93.9% of the total composition (Supplementary Table S3, Supplementary Fig. S2). The essential oils were dominated by monoterpene hydrocarbons, including limonene (14.7-44.4%, predominantly (+)-limonene), δ-3-carene (11.0-28.6%, exclusively (+)-δ-3-carene), terpinolene (5.4-10.0%), and myrcene (5.5-6.7%), followed by the oxygenated monoterpenoid α-terpinyl acetate (4.9-6.8%).
Table 3. Major chemical components of the foliar essential oils (percentages) and monoterpene
enantiomeric distribution (percentages) of Calocedrus decurrens.
RIcalca | RIdbb | Compounds | Major chemical components (%) | ||
C.d. #1 | C.d. #2 | C.d. #3 | |||
934 | 933 | α-Pinene | 7.9 | 4.1 | 5.0 |
989 | 991 | Myrcene | 6.7 | 5.9 | 5.5 |
1011 | 1009 | δ-3-Carene | 28.6 | 14.3 | 11.0 |
1030 | 1030 | Limonene | 14.7 | 38.7 | 44.4 |
1086 | 1086 | Terpinolene | 10.0 | 6.4 | 5.4 |
1219 | --- | Methyl pin-2-en-8-oate c | 2.1 | 1.9 | 3.6 |
1326 | --- | Pin-2-en-8-yl acetate c | 3.2 | - | - |
1345 | 1346 | α-Terpinyl acetate | 5.0 | 6.8 | 4.9 |
RIcalcd | RIdbe | Enantiomers | Enantiomeric distribution (%) | ||
C.d. #1 | C.d. #2 | C.d. #3 | |||
976 | 976 | (–)-α-Pinene | 82.8 | 53.1 | 48.0 |
982 | 982 | (+)-α-Pinene | 17.2 | 46.9 | 52.0 |
1049 | 1052 | (+)-δ-3-Carene | 100.0 | 100.0 | 100.0 |
nd f | na g | (–)-δ-3-Carene | 0.0 | 0.0 | 0.0 |
1074 | 1073 | (–)-Limonene | 16.5 | 3.7 | 2.6 |
1078 | 1081 | (+)-Limonene | 83.5 | 96.3 | 97.4 |
a RIcalc = Retention index values determined with respect to a homologous series of n-alkanes on a ZB-5ms column. b RIdb = Reference retention index values from the databases [36–39]. c Identification tentative; reference RI value not available. d RIcalc = Retention index values determined with respect to a homologous series of n-alkanes on a Restek B-Dex 325 capillary column. e RIdb = Retention index from our in-house database prepared using commercially available standards. f nd = compound not detected. g na = standard compound not available.
The foliar essential oils of C. decurrens have been previously investigated. Samples of C. decurrens from northern California were analyzed by von Rudloff [19] while Adams and co-workers analyzed samples of C. decurrens from southern Oregon, northern Oregon, and southern California [20]. Essential oils from cultivated samples of C. decurrens were reported from Poland [21], Corsica [18], Serbia [22], and Hungary [17]. The major components in these essential oils were consistently δ-3-carene, α-pinene, limonene, myrcene, terpinolene, and α-terpinyl acetate, but the variations in the major components can be visualized in a hierarchical cluster analysis (HCA, Fig. 10).
Figure 9. Average percentage compositions of the major components in Callitropsis nootkatensis essential oil clusters. For each component, bars with the same numbers are not significantly different (p > 0.05, ANOVA followed by Tukey’s test).
3.2. Calocedrus decurrens
The foliar essential oils of C. decurrens were obtained as colorless liquids with a yield of 2.28-2.97% (w/w). The major components of the essential oils by gas chromatographic analyses are summarized in Table 3. A total of 74 compounds were identified in the essential oils, which accounted for 91.6%, 95.9%, and 93.9% of the total composition (Supplementary Table S3, Supplementary Fig. S2). The essential oils were dominated by monoterpene hydrocarbons, including limonene (14.7-44.4%, predominantly (+)-limonene), δ-3-carene (11.0-28.6%, exclusively (+)-δ-3-carene), terpinolene (5.4-10.0%), and myrcene (5.5-6.7%), followed by the oxygenated monoterpenoid α-terpinyl acetate (4.9-6.8%).
RIcalca | RIdbb | Compounds | Major chemical components (%) | ||
C.d. #1 | C.d. #2 | C.d. #3 | |||
934 | 933 | α-Pinene | 7.9 | 4.1 | 5.0 |
989 | 991 | Myrcene | 6.7 | 5.9 | 5.5 |
1011 | 1009 | δ-3-Carene | 28.6 | 14.3 | 11.0 |
1030 | 1030 | Limonene | 14.7 | 38.7 | 44.4 |
1086 | 1086 | Terpinolene | 10.0 | 6.4 | 5.4 |
1219 | --- | Methyl pin-2-en-8-oate c | 2.1 | 1.9 | 3.6 |
1326 | --- | Pin-2-en-8-yl acetate c | 3.2 | - | - |
1345 | 1346 | α-Terpinyl acetate | 5.0 | 6.8 | 4.9 |
RIcalcd | RIdbe | Enantiomers | Enantiomeric distribution (%) | ||
C.d. #1 | C.d. #2 | C.d. #3 | |||
976 | 976 | (–)-α-Pinene | 82.8 | 53.1 | 48.0 |
982 | 982 | (+)-α-Pinene | 17.2 | 46.9 | 52.0 |
1049 | 1052 | (+)-δ-3-Carene | 100.0 | 100.0 | 100.0 |
nd f | na g | (–)-δ-3-Carene | 0.0 | 0.0 | 0.0 |
1074 | 1073 | (–)-Limonene | 16.5 | 3.7 | 2.6 |
1078 | 1081 | (+)-Limonene | 83.5 | 96.3 | 97.4 |
a RIcalc = Retention index values determined with respect to a homologous series of n-alkanes on a ZB-5ms column. b RIdb = Reference retention index values from the databases [36–39]. c Identification tentative; reference RI value not available. d RIcalc = Retention index values determined with respect to a homologous series of n-alkanes on a Restek B-Dex 325 capillary column. e RIdb = Retention index from our in-house database prepared using commercially available standards. f nd = compound not detected. g na = standard compound not available.
The foliar essential oils of C. decurrens have been previously investigated. Samples of C. decurrens from northern California were analyzed by von Rudloff [19] while Adams and co-workers analyzed samples of C. decurrens from southern Oregon, northern Oregon, and southern California [20]. Essential oils from cultivated samples of C. decurrens were reported from Poland [21], Corsica [18], Serbia [22], and Hungary [17]. The major components in these essential oils were consistently δ-3-carene, α-pinene, limonene, myrcene, terpinolene, and α-terpinyl acetate, but the variations in the major components can be visualized in a hierarchical cluster analysis (HCA, Fig. 10).
Figure 10. Dendrogram obtained by agglomerative hierarchical cluster analysis (HCA) of the major chemical components of Calocedrus decurrens foliar essential oils. Maciej = samples from Poland [21], Bakó = samples from Hungary [17], This = samples from this study, Garcia = sample from Corsica [18], Milanović = sample from Serbia [22], Adams = samples from Oregon and California [20], von Rudloff = sample from northern California [19].
There are three obvious clusters observed in the HCA dendrogram. Cluster 1 has α-pinene (32.0 ± 9.0%) and δ-3-carene (24.4 ± 9.8%) as the major components, Cluster 2 is dominated by δ-3-carene (35.5 ± 7.0%), and Cluster 3 is dominated by limonene (30.4 ± 10.3%). ANOVA analysis further illustrates the differences in these three clusters (Fig. 11). It is apparent that the chemical compositions are not necessarily influenced by geographical location. Samples #2 and #3 from this study were grouped with the samples from Adams et al. and von Rudloff, which is not surprising; they are all from native populations. However, C. decurrens sample #1 is found in Cluster 2, which is also populated by samples from Poland, Hungary, Corsica, and Serbia.
Figure 11. Average percentage compositions of the major components in Calocedrus decurrens essential oils. For each constituent, bars with the same numbers are not significantly different (p > 0.05, ANOVA followed by Tukey’s test).
3.3. Sequoia sempervirens
Foliage from S. sempervirens was obtained from three individual trees growing in Paradise, California, USA. Hydrodistillation of the foliage gave colorless essential oils in yields of 2.72%, 2.49%, and 2.89% (w/w). Gas chromatographic analysis of the three essential oils identified 87 compounds, which accounted for 99.9%, 99.8%, and 98.5% of the total essential oil composition (Supplementary Table S4, Supplementary Fig. S3). The major components in the essential oils were α-pinene (10.1-18.8%), myrcene (3.4-6.7%), limonene (6.2-8.7%), β-phellandrene (3.5-7.0%), γ-terpinene (2.5-7.2%), terpinen-4-ol (3.9-5.3%), germacrene B (5.4-8.2%), γ-eudesmol (3.6-6.5%), and α-eudesmol (4.1-8.7%) (Table 4).
Table 4. Major components (% of total) and
enantiomeric distribution (enantiomer %) of chiral monoterpenoids in the foliar
essential oils of Sequoia sempervirens.
RIcalca | RIdbb | Compounds | Major chemical components (%) | ||
S.s. #1 | S.s. #2 | S.s. #3 | |||
934 | 933 | α-Pinene | 18.8 | 16.4 | 10.1 |
972 | 972 | Sabinene | 4.4 | 3.5 | 2.2 |
977 | 978 | β-Pinene | 1.5 | 1.3 | 0.9 |
989 | 989 | Myrcene | 6.7 | 6.0 | 3.4 |
1017 | 1018 | α-Terpinene | 1.2 | 1.2 | 0.3 |
1030 | 1030 | Limonene | 8.5 | 8.7 | 6.2 |
1032 | 1031 | β-Phellandrene | 7.0 | 6.8 | 3.5 |
1058 | 1057 | γ-Terpinene | 7.2 | 6.3 | 2.5 |
1087 | 1087 | Terpinolene | 2.3 | 2.2 | 1.1 |
1183 | 1180 | Terpinen-4-ol | 4.1 | 3.9 | 5.3 |
1197 | 1195 | α-Terpineol | 0.9 | 1.0 | 1.4 |
1347 | 1346 | α-Terpinyl acetate | 2.4 | 2.5 | 3.8 |
1390 | 1390 | trans-β-Elemene | 1.4 | 1.6 | 2.1 |
1420 | 1418 | (E)-β-Caryophyllene | 1.1 | 1.3 | 1.7 |
1430 | 1430 | γ-Elemene | 2.2 | 2.7 | 3.2 |
1482 | 1483 | Germacrene D | 2.6 | 3.6 | 3.3 |
1549 | 1549 | α-Elemol | 1.6 | 1.7 | 2.9 |
1560 | 1557 | Germacrene B | 5.4 | 6.2 | 8.2 |
1632 | 1632 | γ-Eudesmol | 3.6 | 4.2 | 6.5 |
1655 | 1656 | β-Eudesmol | 1.6 | 1.8 | 5.5 |
1656 | 1655 | α-Eudesmol | 2.6 | 2.6 | 3.1 |
RIcalcc | RIdbd | Enantiomers | Enantiomeric distribution (%) | ||
S.s. #1 | S.s. #2 | S.s. #3 | |||
972 | 976 | (–)-α-Pinene | 92.2 | 91.6 | 91.0 |
981 | 982 | (+)-α-Pinene | 7.8 | 8.4 | 9.0 |
1020 | 1021 | (+)-Sabinene | 95.9 | 96.4 | 96.0 |
1030 | 1030 | (–)-Sabinene | 4.1 | 3.6 | 4.0 |
1027 | 1027 | (+)-β-Pinene | 11.2 | 10.9 | 11.3 |
1031 | 1031 | (–)-β-Pinene | 88.8 | 89.1 | 88.7 |
1075 | 1073 | (–)-Limonene | 13.8 | 12.8 | 9.7 |
1079 | 1081 | (+)-Limonene | 86.2 | 87.2 | 90.3 |
1083 | 1083 | (–)-β-Phellandrene | 71.6 | 71.2 | 63.4 |
1088 | 1089 | (+)-β-Phellandrene | 28.4 | 28.8 | 36.6 |
1297 | 1297 | (+)-Terpinen-4-ol | 69.9 | 70.6 | 70.8 |
1301 | 1300 | (–)-Terpinen-4-ol | 30.1 | 29.4 | 29.2 |
1347 | 1347 | (–)-α-Terpineol | 66.4 | 67.8 | 68.2 |
1355 | 1356 | (+)-α-Terpineol | 33.6 | 32.2 | 31.8 |
a RIcalc = Retention index values determined with respect to a homologous series of n-alkanes on a ZB-5ms column. b RIdb = Reference retention index values from the databases [36–39]. c RIcalc = Retention index values determined with respect to a homologous series of n-alkanes on a Restek B-Dex 325 capillary column. d RIdb = Retention index from our in-house database prepared using commercially available standards.
The foliar essential oils of S. sempervirens have been examined previously. Gregonis and co-workers analyzed S. sempervirens foliar essential oil from Oregon, USA, and found α-pinene (19.7%), limonene (10.1%), γ-terpinene (9.8%), and terpinen-4-ol (8.8%) to be the major components [27]. von Rudloff found a similar composition in a sample from northern California, USA, with α-pinene (24.9%) dominating, followed by β-phellandrene (9.9%), limonene (8.6%), γ-terpinene (6.2%), and terpinen-4-ol (5.6%), along with germacrene D (5.5%) [19]. Okamoto et al. carried out a seasonal foliage maturation study of S. sempervirens [28]. The major components in the late season (August) old foliage essential oil were α-pinene (23.2%), γ-terpinene (10.1%), β-phellandrene (10.0%), myrcene (6.8%), and germacrene D (4.9%). Bakó and co-authors analyzed the foliar essential oils from three collections from Hungary [17]. There was some variation in the composition of these samples, but the major components were α-pinene (7.7-22.0%), γ-terpinene (3.8-15.6%), terpinen-4-ol (4.4-9.8%), β-phellandrene (0.0-11.3%), α-terpinene (0.0-13.7%), sabinene (3.2-8.0%), and myrcene (2.6-6.5%). Thus, the foliar essential oil compositions of S. sempervirens are relatively similar, with the compositions composed largely of α-pinene (18.0 ± 5.8%), myrcene (5.2 ± 1.5%), limonene (6.6 ± 3.4%), β-phellandrene (7.1 ± 3.5%), γ-terpinene (7.7 ± 3.9%), and terpinen-4-ol (5.5 ± 2.4%).
As far as we are aware, this is the first report on the enantioselective analysis of S. sempervirens leaf essential oil. (–)-α-Pinene was the dominant enantiomer (91.6 ± 0.6%) in contrast to the wood essential oils [26] where the (+)-enantiomer was dominant (70.1% and 73.3%). (+)-Sabinene (96.1 ± 0.2%), (–)-β-pinene (88.9 ± 0.2%), and (+)-limonene (87.9 ± 2.1%) were also predominant. (+)-Limonene (90.0% and 97.3%) also dominated the wood essential oil. Interestingly, the dominant enantiomer of α-terpineol was the (–)-enantiomer in the leaf essential oil (67.5 ± 0.9%), whereas the (+)-enantiomer predominated in the wood essential oil (74.7% and 72.2%).
3.4. Thuja plicata
Two samples of T. plicata were collected from the Coastal Range of Oregon, USA. Hydrodistillation of the foliage gave pale-yellow essential oils in 3.20% and 4.48% (w/w) yield. The major components in the essential oil are listed in Table 5. A total of 92 compounds were identified in the essential oils accounting for 99.5% of the total composition (Supplementary Table S5, Supplementary Fig. S4).
The major components of the T. plicata foliar essential oils in this study are comparable to those in previous investigations [32, 34, 41–44]. The major components in this study were (–)-α-thujone (65.9% and 62.5%), (+)-β-thujone (10.2% and 12.1%), (+)-sabinene (3.2% and 2.6%), terpinen-4-ol (3.4% and 3.1%, predominantly (+)-enantiomer), and 15-beyeren-19-yl acetate (1.8% and 2.7%).
Table 5. Major components (% of total) and enantiomeric distribution (enantiomer %) of chiral monoterpenoids in the foliar essential oils of Thuja plicata.
RIcalca | RIdbb | Compounds | Major chemical components (%) | |
T.p. #1 | T.p. #2 | |||
933 | 933 | α-Pinene | 1.1 | 1.4 |
972 | 971 | Sabinene | 3.2 | 2.6 |
989 | 989 | Myrcene | 1.5 | 1.8 |
1028 | 1030 | Limonene | 0.8 | 0.9 |
1056 | 1057 | γ-Terpinene | 1.1 | 1.1 |
1107 | 1105 | α-Thujone | 65.9 | 62.5 |
1120 | 1118 | β-Thujone | 10.2 | 12.1 |
1181 | 1180 | Terpinen-4-ol | 3.4 | 3.1 |
2319 | --- | 15-Beyeren-19-yl acetate c | 1.8 | 3.7 |
RIcalcd | RIdbe | Enantiomers | Enantiomeric distribution (%) | |
T.p. #1 | T.p. #2 | |||
977 | 976 | (–)-α-Pinene | 2.8 | 1.8 |
981 | 982 | (+)-α-Pinene | 97.2 | 98.2 |
1018 | 1021 | (+)-Sabinene | 100.0 | 100.0 |
nd f | 1030 | (–)-Sabinene | 0.0 | 0.0 |
1076 | 1073 | (–)-Limonene | 3.8 | 3.2 |
1082 | 1081 | (+)-Limonene | 96.2 | 96.8 |
nd f | 1213 | (+)-α-Thujone | 0.0 | 0.0 |
1220 | 1222 | (–)-α-Thujone | 100.0 | 100.0 |
1229 | 1230 | (+)-β-Thujone | 100.0 | 100.0 |
nd f | na g | (–)-β-Thujone | 0.0 | 0.0 |
1296 | 1297 | (+)-Terpinen-4-ol | 73.4 | 73.9 |
1300 | 1300 | (–)-Terpinen-4-ol | 26.6 | 26.1 |
a RIcalc = Retention index values determined with respect to a homologous series of n-alkanes on a ZB-5ms column.
b RIdb = Reference retention index values from the databases [36–39]. c Identification tentative; reference RI value not available. d RIcalc = Retention index values determined with respect to a homologous series of n-alkanes on a Restek B-Dex 325 capillary column. e RIdb = Retention index from our in-house database prepared using commercially available standards. f nd = compound not detected. g na = standard compound not available.
3.5. Enantiomeric distribution
In addition to this study, enantioselective GC-MS analyses have been carried out on other members of the Cupressaceae, including Chamaecyparis lawsoniana (A. Murray bis) Parl [32], Juniperus horizontalis Moench [45], Juniperus occidentalis Hook. [46], Juniperus osteosperma (Torr.) Little [47], Juniperus scopulorum Sarg. [45], as well as a previous study of T. plicata [32]. The enantiomeric distributions of Cupressaceae species are summarized in Supplementary Table S6.
With these data on the Cupressaceae, the distributions of chiral monoterpenoids in the family can be generalized and compared those of the Pinaceae [32–34,48–53]. When observed, (–)-α-thujene is the exclusive enantiomer in both the Cupressaceae and Pinaceae. (–)-α-Pinene is variable in the Pinaceae as well as in the Cupressaceae; it depends on the genus (e.g., the (–)-enantiomer is major in C. nootkatensis and S. sempervirens, but the (+)-enantiomer is major in Juniperus spp. and T. plicata). When observed, (–)-camphene is the major enantiomer in the Pinaceae, but depends on the genus in the Cupressaceae (e.g., (–)-camphene in C. nootkatensis and S. sempervirens, but (+)-camphene in Juniperus spp. and T. plicata). (–)-Sabinene is the major enantiomer in Pinus spp. [52], whereas (+)-sabinene dominates in Tsuga heterophylla [32] and (+)-sabinene seems to dominate in the Cupressaceae. (–)-β-Pinene is the major enantiomer in the Pinaceae, but varies in the Cupressaceae, depending on the genus, (+)-enantiomer in Juniperus spp. and T. plicata, but (–)-enantiomer in C. nootkatensis, and C. decurrens. When observed, (+)-δ-3-carene was the exclusive enantiomer in both the Cupressaceae and the Pinaceae. α-Phellandrene was nearly racemic in S. sempervirens, but variable in Abies spp. [53]. (+)-α-Phellandrene was the dominant enantiomer in Pinus monticola [52] and Tsuga heterophylla [32]. (+)-Limonene is the major enantiomer in the Cupressaceae, while (–)-limonene predominates in the Pinaceae. Although variable, (–)-β-phellandrene generally predominates in both the Cupressaceae and Pinaceae. When observed (–)-α-thujone and (+)-β-thujone were the only enantiomers observed. (–)-Linalool was the major enantiomer in C. decurrens (Cupressaceae) as well as in P. edulis (Pinaceae) [51], but (+)-linalool was major in J. horizontalis and J. scopulorum. When observed, (+)-cis-sabinene hydrate and (+)-trans-sabinene hydrate were the major enantiomers in the Cupressaceae. Only (+)-camphor was observed in Juniperus spp., while (–)-camphor was observed in Abies grandis [53]. (–)-Terpinen-4-ol was the major enantiomer in Abies spp. [53] and Pinus spp. [52], but (+)-terpinen-4-ol is generally predominant in most species of the Cupressaceae. Likewise, (–)-α-terpineol predominated in Abies spp. [53] and Pinus spp. [52], but was variable in the Cupressaceae, with the (–)-enantiomer predominating in C. nootkatensis and S. sempervirens, and (+) in other genera of the family. (–)-Borneol seems to predominate in both the Cupressaceae and Pinaceae, but note that the retention index values are very similar. When observed, (+)-verbenone (Juniperus spp.) and (–)-piperitone (C. nootkatensis and C. decurrens) were the dominant enantiomers in the Cupressaceae.
4. Conclusions
In this study, the foliar essential oils of Callitropsis nootkatensis, Calocedrus decurrens, Sequoia sempervirens, and Thuja plicata have been obtained and analyzed by GC-MS and chiral GC-MS. The compositions of these Cupressaceae members are comparable to previously published works and serve to corroborate the volatile phytochemistry of these species. Based on the essential oil compositions, four chemotypes of C. nootkatensis and three chemotypes of C. decurrens have been identified. In addition, the enantiomeric distributions of chiral monoterpenoids in these species have been determined and identified some trends in the family. (+)-Sabinene (97.0 ± 9.2%) seems to dominate in the Cupressaceae while (‒)-sabinene is dominant in the Pinaceae. When observed, (+)-δ-3-carene is the exclusive enantiomer in both the Cupressaceae and the Pinaceae. (+)-Limonene (95.0 ± 4.8%) was the major enantiomer in the Cupressaceae, while (‒)-limonene predominated in the Pinaceae. (‒)-β-Phellandrene (87.6 ± 16.3%) generally predominates in both the Cupressaceae and Pinaceae. (+)-Terpinen-4-ol (68.1 ± 7.7%) is generally predominant in most species of the Cupressaceae. (‒)-Borneol seems to predominate in both the Cupressaceae (100%) and Pinaceae (99.6%). Several monoterpenes show variability in their enantiomeric distribution depending on the genus. The enantioselective analyses of members of the Cupressaceae serve as additional phytochemical characterizations of members of the family. Furthermore, enantiomeric distribution information may be useful if essential oils are commercialized (e.g., biological activities of the essential oils, detection of contamination or adulteration). However, additional research on these and other members of the Cupressaceae is necessary to confirm the trends observed in the present study.
Supplementary materials
The following supporting information can be obtained from the corresponding author:
Table S1. Instrument details for the gas chromatographic analyses of Cupressaceae species.
Table S2. Chemical composition of the foliar essential oils of Callitropsis nootkatensis.
Table S3. Chemical composition of the foliar essential oils of Calocedrus decurrens.
Table S4. Chemical composition of the foliar essential oil of Sequoia sempervirens.
Table S5. Chemical composition of the foliar essential oil of Thuja plicata.
Figure S1. Gas chromatograms of Callitropsis nootkatensis foliar essential oils.
Figure S2. Gas chromatograms of Calocedrus decurrens foliar essential oils.
Figure S3. Gas chromatograms of Sequoia sempervirens foliar essential oils.
Figure S4. Gas chromatograms of Thuja plicata foliar essential oils.
Supplementary material to this article can be found online at
https://www.currentsci.com/images/articlesFile/supplementary.1757952346.pdf
Authors’ contributions
Conceptualization, W.N.S.; methodology, P.S., W.N.S.; software, P.S.; validation, P.S., W.N.S.; formal analysis, A.P., P.S., W.N.S.; investigation, E.A., A.M., A.P., P.S., K.S., W.N.S.; resources, P.S., W.N.S.; data curation, W.N.S.; writing—original draft preparation, W.N.S.; writing—review and editing, E.A., A.M., A.P., P.S., K.S.; visualization, W.N.S.; supervision, P.S., W.N.S.; project administration, W.N.S.
Acknowledgements
This work was carried out as part of the activities of the Aromatic Plant Research Center (APRC, https://aromaticplant.org/).
Funding
This research received no specific grant from any funding agency.
Availability of data and materials
All data will be made available on request according to the journal policy.
Conflicts of interest
The authors declare no conflict of interest.
References
1. | Langenheim, J.H. Plant Resins: Chemistry, Evolution, Ecology, and Ethnobotany; Timber Press, Inc.: Portland, Oregon, USA, 2003; ISBN 978-0881925746. |
2. | Rhind, J.P. Essential Oils: A Comprehensive Handbook for Aromatic Therapy; Singing Dragon: London, UK, 2020; ISBN 978-1787752290. |
3. | Little, E.L. Digital representations of tree species range maps Available online: https://commons.wikimedia.org/wiki/Flora_distribution_maps_of_North_America (accessed on 19 May 2025). |
4. | Earle, C.J. Callitropsis nootkatensis (D. Don) Oerst. 1864 Available online: https://www.conifers.org/cu/Callitropsis.php (accessed on 25 June 2025). |
5. | Turner, N.C.; Bell, M.A.M. The ethnobotany of the Southern Kwakiutl Indians of British Columbia. Econ. Bot. 1973, 27, 257–310. https://doi.org/10.1007/BF02907532 |
6. | Andersen, N.H.; Syrdal, D.D. Terpenes and sesquiterpenes of Chamaecyparis nootkatensis leaf oil. Phytochem. 1970, 9, 1325–1340. https://doi.org/10.1016/S0031-9422(00)85326-1 |
7. | Cheng, Y.S.; von Rudloff, E. The volatile oil of the leaves of Chamaecyparis nootkatensis. Phytochemistry 1970, 9, 2517–2527, https://doi.org/10.1016/S0031-9422(00)85772-6 |
8. | Adams, R.P.; Thomas, P.; Rushforth, K. The leaf essential oils of the new conifer genus, Xanthocyparis: Xanthocyparis vietnamensis and X. nootkatensis. J. Essent. Oil Res. 2007, 19, 30–33. https://doi.org/10.1080/10412905.2007.9699223 |
9. | Adams, R.P.; Russell, J.H.; Hunter, G.; Fairhall, T.A.; Dillman, K.; Corbet, M. The foliage terpenoids of Callitropsis nootkatensis: Comparison of oils from cultivated and natural trees. Phytologia. 2014, 96, 135–148. |
10. | Kelsey, R.G.; González-Hernández, M.P.; Karchesy, J.; Veluthoor, S. Volatile terpenoids and tropolones in heartwood extracts of yellow-cedar, Monterey cypress, and their hybrid Leyland cypress. Ann. For. Sci. 2015, 72, 349–355. https://doi.org/10.1007/s13595-014-0429-6 |
11. | eFloras.org. Calocedrus decurrens (Torrey) Florin. Available online: http://www.efloras.org/florataxon.aspx?flora_id=1&taxon_id=233500299 (accessed on 3 September 2024). |
12. | Earle, C.J. Calocedrus decurrens (Torrey) Florin 1956. Available online: https://www.conifers.org/cu/Calocedrus_decurrens.php (accessed on 13 July 2025). |
13. | Chestnut, V.K. Plants used by the Indians of Mendocino County, California. Contrib. from U.S. Natl. Herb. 1902, 7, 295–408. |
14. | Mahar, J.M. Ethnobotany of the Oregon Paiutes of the Warm Springs Indian Reservation, B.A. Thesis, Reed College, Portland, Oregon, 1953. |
15. | Coville, F. V. Notes on the plants used by the Klamath Indians of Oregon. Contrib. from U.S. Natl. Herb. 1897, 5, 87–110. |
16. | Veluthoor, S.; Kelsey, R.G.; González-Hernández, M.P.; Panella, N.; Dolan, M.; Karchesy, J. Composition of the heartwood essential oil of incense cedar (Calocedrus decurrens Torr.). Holzforschung 2011, 65, 333–336. https://doi.org/10.1515/hf.2011.051 |
17. | Bakó, E.; Böszörményi, A.; Vargáné Szabó, B.; Engh, M.A.; Hegyi, P.; Ványolós, A.; Csupor, D. Chemometric analysis of monoterpenes and sesquiterpenes of conifers. Front. Plant Sci. 2024, 15, 1392539. https://doi.org/10.3389/fpls.2024.1392539 |
18. | Garcia, G.; Tissandié, L.; Filippi, J.J.; Tomi, F. New pinane derivatives found in essential oils of Calocedrus decurrens. Molecules 2017, 22, 921. https://doi.org/10.3390/molecules22060921 |
19. | Rudloff, E. von The leaf oil terpene composition of incense cedar and coast redwood. Can. J. Chem. 1981, 59, 285–287. https://doi.org/10.1139/v81-046 |
20. | Adams, R.P.; Nguyen, S.; Hsieh, C.-F.; Kaiyun, G. The leaf essential oils of the genus Calocedrus. J. Essent. Oil Res. 2006, 18, 654–658. https://doi.org/10.1080/10412905.2006.9699196 |
21. | Włodarczyk, M. [Phytochemical analysis of Californian incense cedar (Calocedrus decurrens (Torr.) Florin), as the source of natural compounds with a prospective medical interest] in Polish, Ph.D. thesis, Wroclaw Medical University, Poland, 2011. |
22. | Milanović, S.D.; Milenković, I.L.; Lazarević, J.M.; Todosijević, M.M.; Ljujić, J.P.; Mitić, Z.S.; Nikolić, B.M.; Marin, P.D.; Tešević, V. V. Biological activity of essential oils of Calocedrus decurrens and Cupressus arizonica on Lymantria dispar larvae and Phytophthora root pathogens. Ind. Crops Prod. 2024, 215, 118602. https://doi.org/10.1016/j.indcrop.2024.118602 |
23. | Little, E.L. Incense cedar (Libocedrus decurrens) extent, North America. Available online: https://databasin.org/datasets/68382f7705174f2d85eb485ad5ee6798/ (accessed on 13 July 2025). |
24. | Earle, C.J. Sequoia sempervirens (D. Don) Endlicher 1847. Available online: https://www.conifers.org/cu/Sequoia.php (accessed on 5 August 2025). |
25. | Gifford, E.W. Ethnographic notes on the Southwestern Pomo. Anthropol. Rec. 1967, 25, 10–15. |
26. | Setzer, W.N.; Satyal, P. Chemical composition of the wood essential oils of Sequoia sempervirens (California redwood). J. Essent. Oil Plant Comp. 2023, 1, 20–25. https://doi.org/10.58985/jeopc.2023.v01i01.04 |
27. | Gregonis, D.E.; Portwood, R.D.; Davidson, W.H.; Durfee, D.A.; Levinson, A.S. Volatile oils from foliage of coast redwood and big tree. Phytochem. 1968, 7, 975–981. https://doi.org/10.1016/S0031-9422(00)82184-6 |
28. | Okamoto, R.A.; Ellison, B.O.; Kepner, R.E. Volatile terpenes in Sequoia sempervirens foliage. Changes in composition during maturation. J. Agric. Food Chem. 1981, 29, 324–326. https://doi.org/10.1021/jf00104a026 |
29. | Hall, G.D.; Langenheim, J.H. Temporal changes in the leaf monoterpenes of Sequoia sempervirens. Biochem. Syst. Ecol. 1986, 14, 61–69. https://doi.org/10.1016/0305-1978(86)90086-4 |
30. | Espinosa-Garcia, F.J.; Langenheim, J.H. Effect of some leaf essential oil phenotypes in coastal redwood on the growth of several fungi with endophytic stages. Biochem. Syst. Ecol. 1991, 19, 629–642. https://doi.org/10.1016/0305-1978(91)90079-f. |
31. | Earle, C.J. Thuja plicata Donn Ex D. Don in Lambert 1824. Available online: https://www.conifers.org/cu/Thuja_plicata.php (accessed on 6 August 2025). |
32. | Ankney, E.; Swor, K.; Poudel, A.; Satyal, P.; da Silva, J.K.R.; Setzer, W.N. Chemical compositions and enantiomeric distributions of foliar essential oils of Chamaecyparis lawsoniana (A. Murray Bis) Parl, Thuja plicata Donn Ex D. Don, and Tsuga heterophylla Sarg. Plants. 2024, 13, 1325. https://doi.org/10.3390/plants13101325 |
33. | Ankney, E.; Swor, K.; Satyal, P.; Setzer, W.N. Essential oil compositions of Pinus species (P. contorta subsp. contorta, P. ponderosa var. ponderosa, and P. flexilis); enantiomeric distribution of terpenoids in Pinus species. Molecules. 2022, 27, 5658. https://doi.org/10.3390/molecules27175658 |
34. | Swor, K.; Satyal, P.; Poudel, A.; Setzer, W.N. Gymnosperms of Idaho: Chemical compositions and enantiomeric distributions of essential oils of Abies lasiocarpa, Picea engelmannii, Pinus contorta, Pseudotsuga menziesii, and Thuja plicata. Molecules. 2023, 28, 2477. https://doi.org/10.3390/molecules28062477 |
35. | van den Dool, H.; Kratz, P.D. A generalization of the retention index system including linear temperature programmed gas-liquid partition chromatography. J. Chromatogr. A 1963, 11, 463–471. https://doi.org/10.1016/S0021-9673(01)80947-X |
36. | Adams, R.P. Identification of Essential Oil Components by Gas Chromatography/Mass Spectrometry; 4th ed.; Allured Publishing: Carol Stream, Illinois, USA, 2007, ISBN 978-1-932633-21-4. |
37. | Mondello, L. FFNSC 3; Shimadzu Scientific Instruments: Columbia, Maryland, USA, 2016. |
38. | NIST20; National Institute of Standards and Technology: Gaithersburg, Maryland, USA, 2020. |
39. | Satyal, P. Development of GC-MS Database of Essential Oil Components by the Analysis of Natural Essential Oils and Synthetic Compounds and Discovery of Biologically Active Novel Chemotypes in Essential Oils, Ph.D. Dissertation, University of Alabama in Huntsville, Huntsville, AL, USA, 2015. |
40. | Malhocká, A.; Švábová, M.; Suchý, T. Chemotaxonomy according to leaf terpenes of eight cypress species growing in the Czech Republic in the light of modern phylogenetic classification. Biochem. Syst. Ecol. 2025, 120, 104980. https://doi.org/10.1016/j.bse.2025.104980 |
41. | von Rudloff, E.; Lapp, M.S.; Yeh, F.C. Chemosystematic study of Thuja plicata: Multivariate analysis of leaf oil terpene composition. Biochem. Syst. Ecol. 1988, 16, 119–125. https://doi.org/10.1016/0305-1978(88)90083-X |
42. | Tsiri, D.; Graikou, K.; Poblocka-Olech, L.; Krauze-Baranowska, M.; Spyropoulos, C.; Chinou, I. Chemosystematic value of the essential oil composition of Thuja species cultivated in Poland - Antimicrobial activity. Molecules. 2009, 14, 4707–4715. https://doi.org/10.3390/molecules14114707 |
43. | Nikolić, B.M.; Milanović, S.D.; Milenković, I.L.; Todosijević, M.M.; Đorđević, I.; Brkić, M.Z.; Mitić, Z.S.; Marin, P.D.; Tešević, V. V. Bioactivity of Chamaecyparis lawsoniana (A. Murray) Parl. and Thuja plicata Donn Ex D. Don essential oils on Lymantria dispar (Linnaeus, 1758) (Lepidoptera: Erebidae) larvae and Phytophthora de Bary 1876 root pathogens. Ind. Crops Prod. 2022, 178, 114550. https://doi.org/10.1016/j.indcrop.2022.114550 |
44. | Lis, A.; Swaczyna, A.; Krajewska, A.; Mellor, K. Chemical composition of the essential oils from twigs, leaves, and cones of Thuja plicata and its cultivar varieties “Fastigiata”, “Kornik,” and “Zebrina.” Nat. Prod. Commun. 2019, 14, 1934578X19862904. https://doi.org/10.1177/1934578X19862904 |
45. | Swor, K.; Poudel, A.; Satyal, P.; Setzer, W.N. Enantiomeric distribution of terpenoids in Juniperus essential oils: Composition of Juniperus horizontalis and Juniperus scopulorum leaf essential oils from southwestern Idaho. Nat. Prod. Commun. 2022, 17, 1934578X221091006. https://doi.org/10.1177/1934578X221091006 |
46. | Swor, K.; Poudel, A.; Satyal, P.; Setzer, W.N. Chemical composition of the foliar essential oil of Juniperus occidentalis var. occidentalis from southeastern Oregon. Am. J. Essent. Oils Nat. Prod. 2024, 12, 1–8. https://doi.org/10.22271/23219114.2024.v12.i1a.258 |
47. | Swor, K.; Poudel, A.; Satyal, P.; Setzer, W.N. The essential oil composition of Juniperus osteosperma foliar essential oil from southern Idaho. J. Essent. Oil Plant Comp. 2024, 2, 59–70. https://doi.org/10.58985/jeopc.2024.v02i01.44 |
48. | Swor, K.; Poudel, A.; Rokaya, A.; Satyal, P.; Setzer, W.N. Foliar essential oil of white fir (Abies concolor (Gordon) Lindl. ex Hildebr.): Chemical composition and enantiomeric distribution. Nat. Prod. Commun. 2022, 17, 1934578X221086901. https://doi.org/10.1177/1934578X221086901 |
49. | Ankney, E.; Satyal, P.; Setzer, W.N. Chemical compositions and enantiomeric distributions of leaf essential oils of three conifers from Oregon. Am. J. Essent. Oils Nat. Prod. 2021, 9, 7–14. |
50. | Swor, K.; Poudel, A.; Satyal, P.; Setzer, W.N. Chemical composition and enantiomeric distribution of Picea pungens essential oil. Am. J. Essent. Oils Nat. Prod. 2021, 9, 14–18. |
51. | Swor, K.; Poudel, A.; Satyal, P.; Setzer, W.N. The pinyon pines of Utah: Leaf essential oils of Pinus edulis and Pinus monophyla. J. Essent. Oil-Bear. Plant. 2024, 27, 547–559. https://doi.org/10.1080/0972060X.2024.2328115 |
52. | Moore, A.; Ankney, E.; Swor, K.; Poudel, A.; Satyal, P.; Setzer, W.N. Leaf essential oil compositions and enantiomeric distributions of monoterpenoids in Pinus species: Pinus albicaulis, Pinus flexilis, Pinus lambertiana, Pinus monticola, and Pinus sabiniana. Molecules. 2025, 30, 244. https://doi.org/10.3390/molecules30020244 |
53. | Ankney, E.; Moore, A.; Poudel, A.; Satyal, P.; Swor, K.; Setzer, W.N. The chemical compositions of Abies foliar essential oils from the western United States. J. Essent. Oil Plant Comp. 2025, 3, 105–123. https://doi.org/10.58985/jeopc.2025.v03i02.70 |

This work is licensed under the
Creative Commons Attribution
4.0
License (CC BY-NC 4.0).
Abstract
Members of the Cupressaceae have historically held importance in traditional medicine as well as sources of essential oils. As part of our interest in medicinal and aromatic plants, we obtained essential oils from the foliage of Callitropsis nootkatensis, Calocedrus decurrens, Sequoia sempervirens, and Thuja plicata growing in the western United States. The essential oils were analyzed by gas chromatography particularly enantioselective gas chromatography to ascertain whether there are trends in the enantiomeric distribution of chiral monoterpenoids in this family. The major components in C. nootkatensis were α-pinene (33.5%, 16.4%; 81.8% (‒)-α-pinene), (+)-δ-3-carene (28.6-11.0%), and limonene (34.4%, 4.2%; 89.7% (+)-limonene). The major components in C. decurrens were (+)-δ-3-carene (28.6-11.0%), limonene (44.4-14.7%, 92.4% (+)-limonene, and terpinolene (10.0-5.4%). The major components in S. sempervirens were α-pinene (18.8-10.1%, 91.6% (‒)-α-pinene), limonene (8.7-6.2%, 87.9% (+)-limonene), and germacrene B (8.2-5.4%). (‒)-α-Thujone (65.9%, 62.5%) and (+)-β-thujone (12.1%, 10.2%) were dominated in the essential oil of T. plicata. The chemical compositions of the essential oils are comparable to those reported previously. However, this is the first investigation of the enantiomeric distribution of chiral monoterpenoids in C. nootkatensis, C. decurrens, and S. sempervirens. (+)-Sabinene is the major enantiomer in the Cupressaceae, whereas (–)-sabinene is the major enantiomer in Pinus spp. (+)-Limonene is the major enantiomer in the Cupressaceae, while (–)-limonene predominates in the Pinaceae. In contrast to members of the Pinaceae (e.g., Abies and Pinus spp.), in which (–)-terpinen-4-ol and (–)-α-terpineol were dominant, these two monoterpene alcohols showed variable enantiomeric distributions in the Cupressaceae. The enantioselective gas chromatographic analysis of the Cupressaceae adds to our understanding of the phytochemistry of this family.
Abstract Keywords
Chiral, enantiomers, monoterpenoids, δ-3-carene, limonene, sabinene, thujone, GC-MS.

This work is licensed under the
Creative Commons Attribution
4.0
License (CC BY-NC 4.0).

Editor-in-Chief

This work is licensed under the
Creative Commons Attribution 4.0
License.(CC BY-NC 4.0).
